Teammachine SLR01 MOD ICS2
ICS2 Integrated Cockpit Design
Premium Carbon D-Shape Seatpost
Integrated Aerocore Bottle Cages
ICS2 Integrated Cockpit Design
Premium Carbon D-Shape Seatpost
Integrated Aerocore Bottle Cages
ICS2 Integrated Cockpit Design
Premium Carbon D-Shape Seatpost
Integrated Aerocore Bottle Cages
Pioneering Design Philosophy
-
ACE+ not only generates thousands of virtual frameset prototypes to satisfy Stiffness, Weight and Compliance targets, but now also includes a fourth key factor, Aerodynamics.
-
All-new ICS2, with significant weight savings, high stiffness, clean aesthetics and integrated device mounts for the most popular devices.
-
Aerocore system consists of two superlight carbon cages that seamlessly integrate with the reshaped downtube and seat tube, resulting in significant drag reduction when used with bottles.
-
The latest evolution of BMC's signature D-Shape seatpost: this optimized design features the minimalist saddle clamp, resulting in lower weight; while still retaining excellent aerodynamic performance and compliance.
-
The new Teammachine SLR is more compliant than ever, thanks to the latest evolution of the Tuned Compliance Concept (TCC) technology. Fine tuning of the carbon layups, essential vertical frame and seatpost flex, to improve traction and control, resulting in reduced muscle fatigue.
-

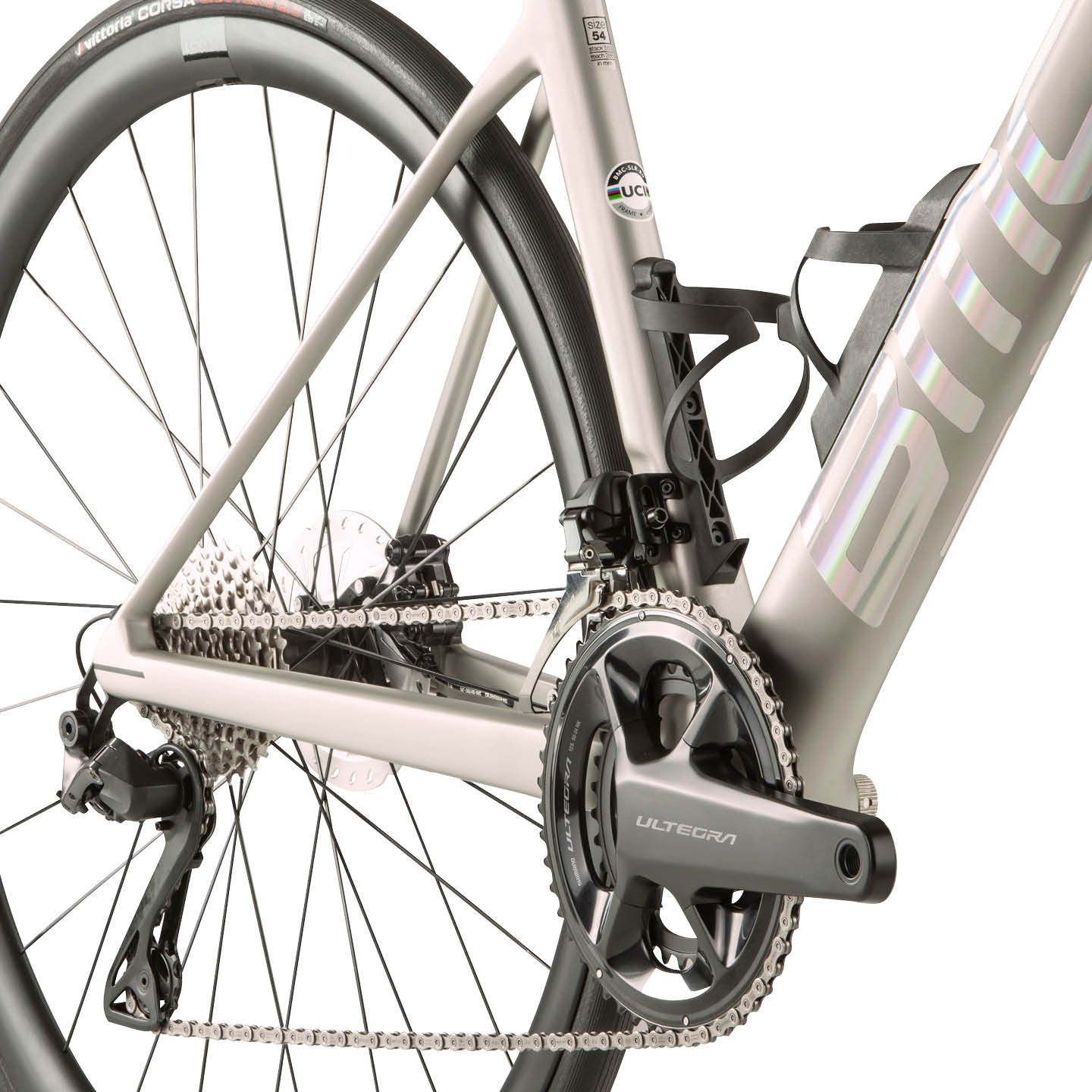

Renowned for its power transfer, the new Teammachine SLR goes one step further, with its new down tube shape and optimised carbon layup providing even greater bottom bracket shell support.
-

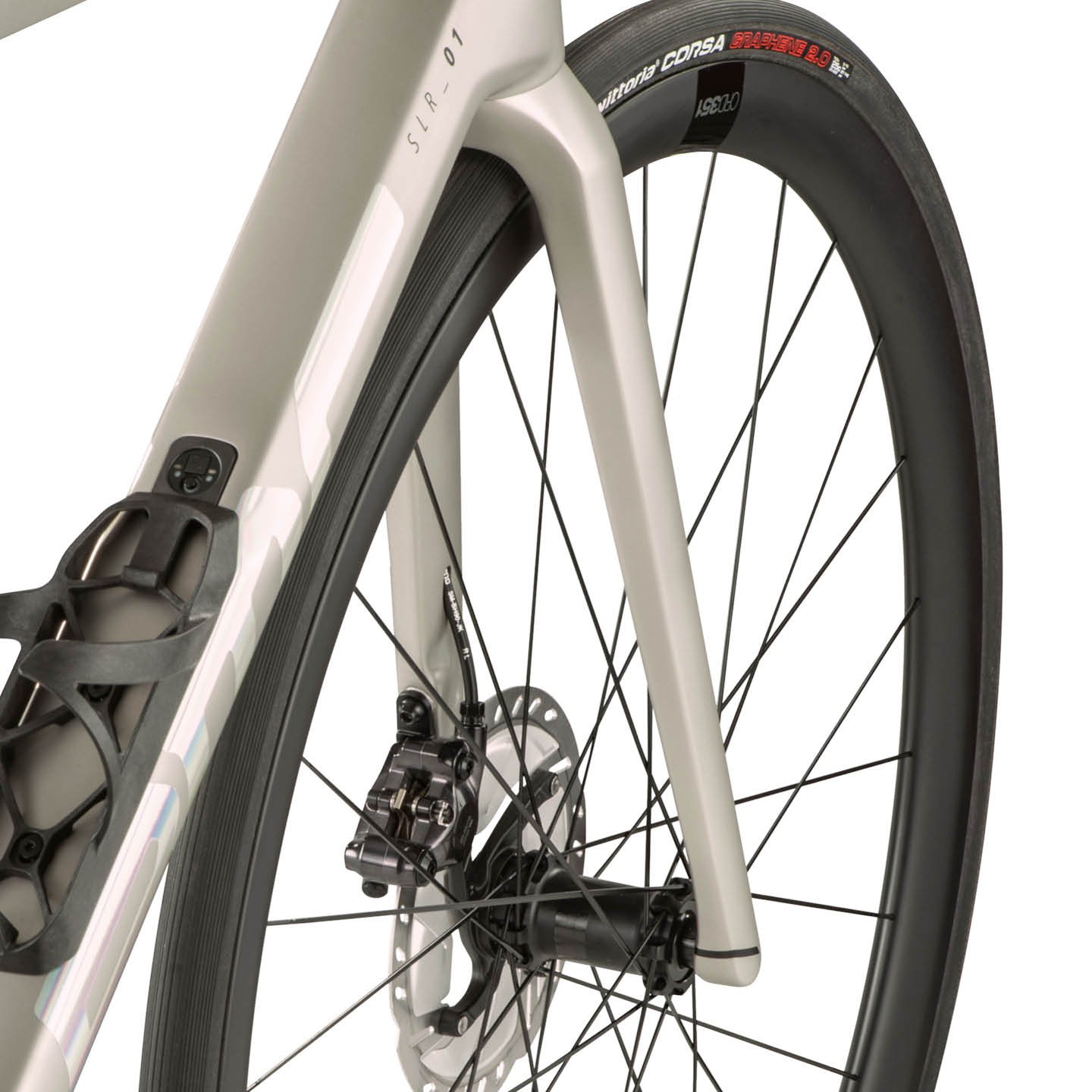

An aerodynamically reshaped fork with stealth dropout design and integrated thru-axle nut show that high technical proficiency can go hand in hand with beautiful, minimalist aesthetics.
Frame
Teammachine SLR 01 Premium Carbon with Aerocore Design • ICS Technology • Integrated Aerocore Bottle Cages • Stealth Dropout Design • TCC Race Compliance Level • PF86 Bottom Bracket • Flat Mount Disc • 12x142mm Thru-Axle
Fork
Teammachine SLR 01 Premium Carbon • ICS Technology, Stealth Cable Routing • TCC Race Compliance Level • Stealth Dropout Design • Flat Mount Disc • 12x100mm Thru-Axle • 48mm Offset (Size 47-51), 43mm Offset (Size 54-61)
Handlebar
BMC RCB01 Carbon, Ergo Top Shape, Compact Bend
Stem
BMC ICS2 - Integrated Cockpit Design
Seatpost
Teammachine SLR 01 Premium Carbon D-Shaped Seatpost • 15mm Offset
Tire Clearance
30mm (Measured Width)
Extras
Aerocore Bottle Cages
Weight
1.99kg / 4.39lb
Weight Limit
110kg / 242lb
ASTM Classification
Level 1
