Kaius 01 THREE
SRAM RIVAL eTAP AXS Wide Drivetrain
CRD-400 Carbon Wheelset
ICS 2 Stem / RCB02 Bar
SRAM RIVAL eTAP AXS Wide Drivetrain
CRD-400 Carbon Wheelset
ICS 2 Stem / RCB02 Bar
SRAM RIVAL eTAP AXS Wide Drivetrain
CRD-400 Carbon Wheelset
ICS 2 Stem / RCB02 Bar
Pioneering Design Philosophy
-
The innovative premium carbon layup uses ultra high-module fibres for unmatched stiffness resulting in maximum power transfer and minimal weight. Kaius boasts our Tuned Compliance Concept Race Technology for a comfortable ride on rough surfaces and targeted reinforcements protect your frame against the demands of gravel racing.
-
Kaius was built with one purpose: to be fast on gravel roads. That is why we produced a gravel-specific frame with a longer reach shifting the front wheel forward to improve stability and increase traction on loose surfaces. With the shorter stem providing responsive handling, Kaius sports a progressive and race-tuned geometry for evolving riding styles.
-
ICS2, with significant weight savings, high stiffness, clean aesthetics and integrated device mounts for the most popular devices.
-

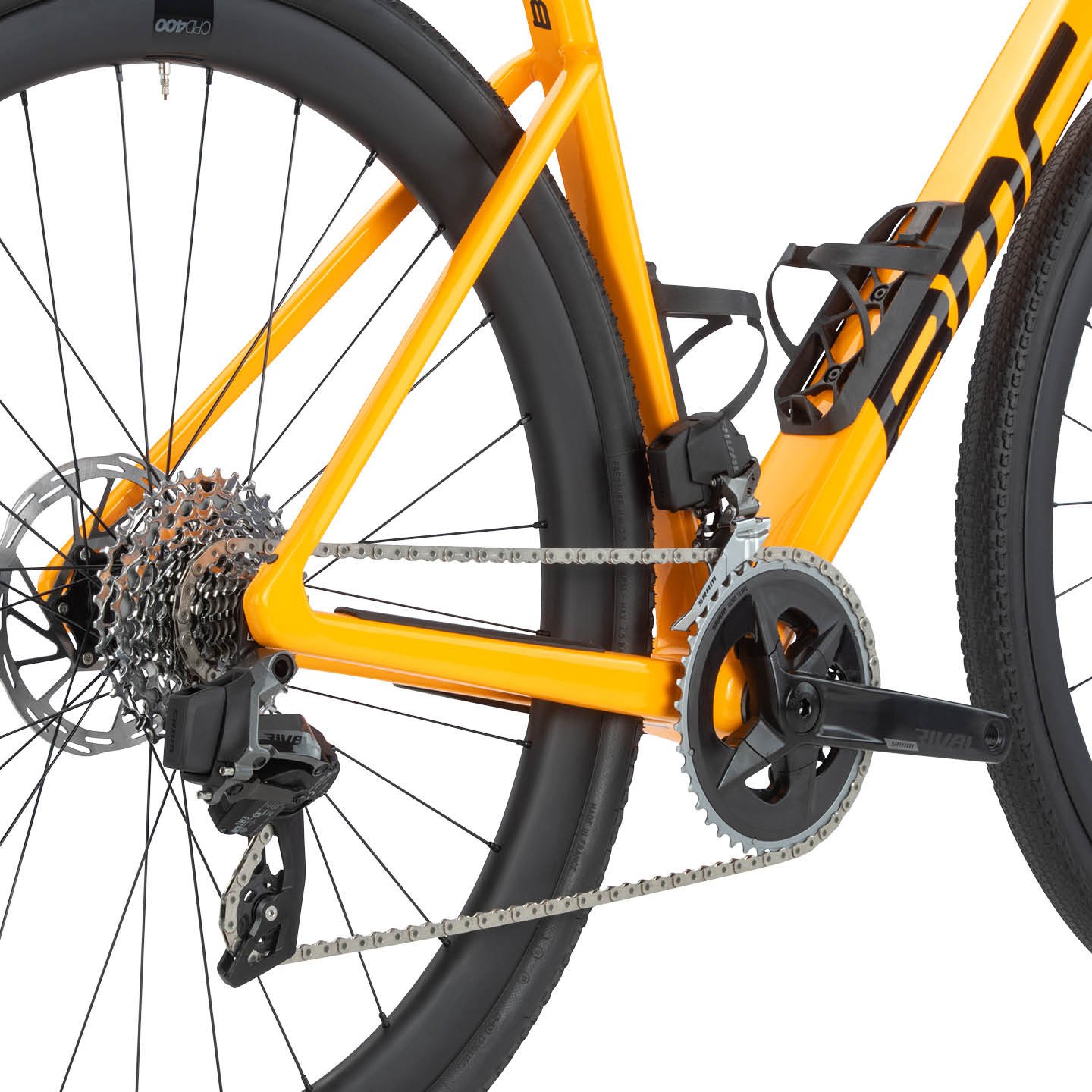

Kaius comes in at the highest level of functional integration with our Aerocore design. This evolved solution integrates the bottle cages into the frame to optimize aerodynamic performance.
-
Being a race bike, Kaius is not only stiff and comfortable but also lightweight. With a frame weighing only 910g, the fork 400g, a seat post at 160g, and the cockpit clocking in at 315g, we produced a module that is going to make you fly up the hills at a lightweight 1.785 kg.
-
Versatile by design, Kaius comes with all you would expect from a high-end gravel race bike. It can fit 1x and 2x drivetrains, tires up to 44 mm, a dropper post, our new MTT Suspensions Stem, and top tube bolt-on bags.
Technical Overview
Frame
Kaius 01 Premium Carbon with Aerocore Design
Fork
Kaius 01 Premium Carbon
12x100mm Thru-Axle
Chainwheel
SRAM RIVAL AXS WIDE 43-30T
Cassette
SRAM RIVAL AXS XG-1250 10-36T
Chain
SRAM RIVAL 12 Speed
Rear Derailleur
SRAM RIVAL eTap AXS WIDE
Shifters
SRAM RIVAL eTap AXS HRD
Brakes
SRAM Rival eTap AXS HRD, Paceline Rotors (160/160)
Handlebar
BMC RAB 02 Ergo Top Shape Compact Bend
Stem
BMC ICS2 - Integrated Cockpit Design
Seatpost
Kaius 01 Premium Carbon D-Shaped Seatpost - 15mm Offset
Saddle
Fizik Vento Argo R5
Hubs
CRD-400
Rims
CRD-400 Carbon - Tubeless Ready - 40mm
Tires
Pirelli Cinturato Gravel H - 40mm
Tire Clearance
44mm (Measured Width)
Extras
Aerocore Bottle Cages
Weight
6.80g / 14.99lb
Weight Limit
120kg / 265lb
ASTM Classification
Level 2
